线段树学习

最近的leetcode周赛中，经常出现线段树，加之今天每日一题有线段树，因此进行学习与训练

用途、操作、结构

1.用途：

  • 维护区间信息
  • 维护区间修改
  • 时间复杂度为logn

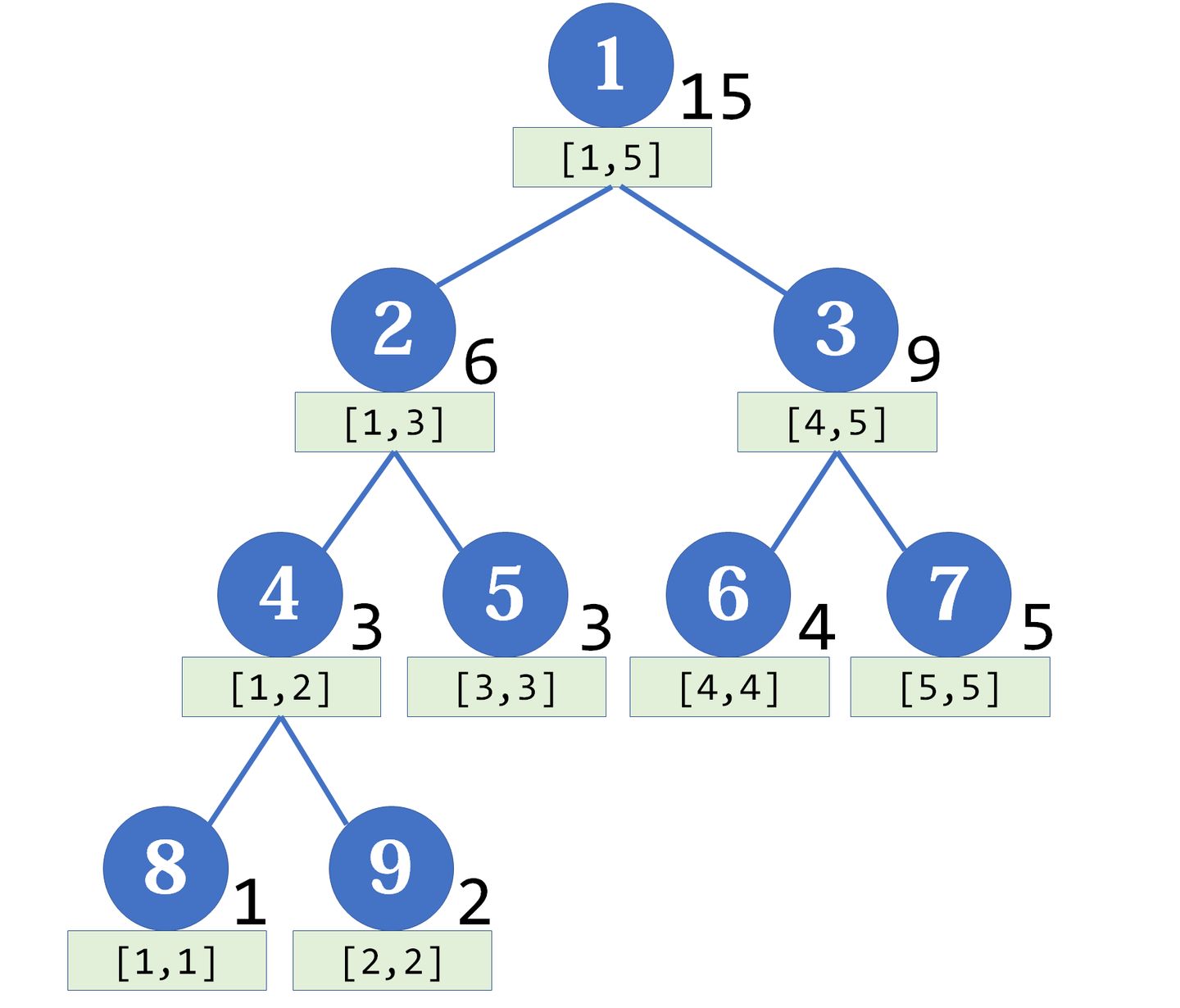

    直观的图形结构

维护线段树需要的操作

  • pushup：由子节点计算父节点的信息；
  • pushdown：把当前父节点的修改信息下传到子节点，也被称为懒标记（延迟标记）；这个操作比较复杂，一般不涉及到区间修改则不用写。
  • build：将一段区间初始化成线段树；
  • modify：修改操作，分为两类：① 单点修改（需要使用pushup），② 区间修改（需要使用pushdown）；
  • query：查询一段区间的值

对于不同的题目，具体查找的值也不尽相同，但是要求维护的值必须满足结合律，即同样的操作，即使顺序不同，得到的结果也是相同的。

V1. 区间和+区间修改+区间查询

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
from typing import List

class SegTree:
    def __init__(self, siz, data):
        self.tree = [0] * (siz*4+4)
        self.lazy = [0] * (siz*4+4)
        self.data = data

    def build(self, l, r, p=1):
        if l == r:
            self.tree[p] = self.data[l-1]
            return
        mid = (l+r)//2
        self.build(l, mid, p*2)
        self.build(mid+1, r, p*2+1)
        self.tree[p] = self.tree[p * 2] + self.tree[p * 2 + 1]

    def push_down(self,p ,len):
        self.lazy[p*2] += self.lazy[p]
        self.lazy[p*2+1] += self.lazy[p] # lazy传递下去
        self.tree[p*2] += self.lazy[p] * (len- len//2) # 但是值的更新需要取决于长度
        self.tree[p*2+1] += self.lazy[p] * (len//2)
        self.lazy[p] = 0 # 已经传递下去了，所以现在没有待传递的值

    def query(self, l, r, ql, qr, p = 1):
        if qr < l or ql > r: # 查询范围在区间外，返回0
            return 0
        if ql >= l and qr <= r: # 查询范围完全在区间内，返回内容
            return self.tree[p]
        else: #二分查找到目标区间
            mid = (ql+qr)//2
            self.push_down(p, qr-ql+1)
            return self.query(l,r,ql,mid,p*2) \
                + self.query(l,r,mid+1,qr,p*2+1)

    def update(self, l, r, ql, qr, data, p=1):
        if qr < l or ql > r: # 查询范围在区间外，返回
            return
        if ql >= l and qr <= r: # 完全覆盖区间
            self.tree[p] += (qr-ql+1) * data # 首先求值
            if qr > ql: # 非叶子节点，向下传递
                self.lazy[p] += data
        else:#覆盖了一部分，递归继续更新
            mid = (ql + qr) // 2
            self.push_down(p,qr-ql+1)
            self.update(l,r,ql,mid,data,p*2)
            self.update(l,r,mid+1,qr,data,p*2+1)

            self.tree[p] = self.tree[p * 2] + self.tree[p * 2 + 1]


class NumArray:

    def __init__(self, nums: List[int]):
        self.tree = SegTree(len(nums), nums)
        self.tree.build(1,len(nums))
        self.l = 1
        self.r = len(nums)
        self.nums = nums
        print(self.tree.tree)


    def update(self, index: int, val: int) -> None:
        self.tree.update(index+1,index+1,self.l,self.r,val-self.nums[index])
        self.nums[index] = val


    def sumRange(self, left: int, right: int) -> int:
        left += 1
        right += 1
        print(f"q {left}-{right}")
        return self.tree.query(left,right,self.l, self.r,1)



V1.1 区间和+单点修改+区间查询

在原始代码中，我们已经在 update 方法的最后一行隐式地执行了 push_up 操作
将这一行代码抽象为一个单独的 push_up 方法并在需要的地方调用它，可以使代码更具可读性和可维护性。这使得代码结构更加清晰，便于理解和修改。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
from typing import List

class SegTree:
    def __init__(self, siz, data):
        self.tree = [0] * (siz*4+4)
        self.lazy = [0] * (siz*4+4)
        self.data = data

    def build(self, l, r, p=1):
        if l == r:
            self.tree[p] = self.data[l-1]
            return
        mid = (l+r)//2
        self.build(l, mid, p*2)
        self.build(mid+1, r, p*2+1)
        self.push_up(p)

    def push_up(self, p):
        self.tree[p] = self.tree[p * 2] + self.tree[p * 2 + 1]

    def push_down(self, p, len):
        self.lazy[p*2] += self.lazy[p]
        self.lazy[p*2+1] += self.lazy[p] # lazy传递下去
        self.tree[p*2] += self.lazy[p] * (len - len//2) # 但是值的更新需要取决于长度
        self.tree[p*2+1] += self.lazy[p] * (len//2)
        self.lazy[p] = 0 # 已经传递下去了，所以现在没有待传递的值

    def query(self, l, r, ql, qr, p = 1):
        if qr < l or ql > r: # 查询范围在区间外，返回0
            return 0
        if ql >= l and qr <= r: # 查询范围完全在区间内，返回内容
            return self.tree[p]
        else: #二分查找到目标区间
            mid = (ql+qr)//2
            self.push_down(p, qr-ql+1)
            return self.query(l,r,ql,mid,p*2) \
                + self.query(l,r,mid+1,qr,p*2+1)

    def update(self, l, r, ql, qr, data, p=1):
        if qr < l or ql > r: # 查询范围在区间外，返回
            return
        if ql >= l and qr <= r: # 完全覆盖区间
            self.tree[p] += (qr-ql+1) * data # 首先求值
            if qr > ql: # 非叶子节点，向下传递
                self.lazy[p] += data
        else: #覆盖了一部分，递归继续更新
            mid = (ql + qr) // 2
            self.push_down(p,qr-ql+1)
            self.update(l,r,ql,mid,data,p*2)
            self.update(l,r,mid+1,qr,data,p*2+1)
            self.push_up(p)

V2 区间最值线段树

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
from typing import List

class SegTree:
    def __init__(self, siz, data):
        self.tree = [0] * (siz*4+4)
        self.lazy = [0] * (siz*4+4)
        self.data = data

    def build(self, l, r, p=1):
        if l == r:
            self.tree[p] = self.data[l-1]
            return
        mid = (l+r)//2
        self.build(l, mid, p*2)
        self.build(mid+1, r, p*2+1)
        self.push_up(p)

    def push_up(self, p):
        self.tree[p] = max(self.tree[p * 2], self.tree[p * 2 + 1])

    def push_down(self, p, len):
        self.lazy[p*2] += self.lazy[p]
        self.lazy[p*2+1] += self.lazy[p] # lazy传递下去
        self.tree[p*2] += self.lazy[p]
        self.tree[p*2+1] += self.lazy[p]
        self.lazy[p] = 0 # 已经传递下去了，所以现在没有待传递的值

    def query(self, l, r, ql, qr, p = 1):
        if qr < l or ql > r: # 查询范围在区间外，返回负无穷大（用于比较最大值）
            return float('-inf')
        if ql >= l and qr <= r: # 查询范围完全在区间内，返回内容
            return self.tree[p]
        else: #二分查找到目标区间
            mid = (ql+qr)//2
            self.push_down(p, qr-ql+1)
            return max(self.query(l,r,ql,mid,p*2), self.query(l,r,mid+1,qr,p*2+1))

    def update(self, l, r, ql, qr, data, p=1):
        if qr < l or ql > r: # 查询范围在区间外，返回
            return
        if ql >= l and qr <= r: # 完全覆盖区间
            self.tree[p] = data # 更新为新的最大值
            if qr > ql: # 非叶子节点，向下传递
                self.lazy[p] += data - self.tree[p]
        else: #覆盖了一部分，递归继续更新
            mid = (ql + qr) // 2
            self.push_down(p,qr-ql+1)
            self.update(l,r,ql,mid,data,p*2)
            self.update(l,r,mid+1,qr,data,p*2+1)
            self.push_up(p)

v2.1 最值区间动态开点线段树

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
class Node:
    def __init__(self, l, r):
        self.left = None
        self.right = None
        self.l = l
        self.r = r
        self.mid = (l + r) >> 1
        self.v = 0
        self.add = 0


class SegmentTree:
    def __init__(self,l,r):
        self.root = Node(l, int(r))

    def modify(self, l, r, v, node=None):
        if l > r:
            return
        if node is None:
            node = self.root
        if node.l >= l and node.r <= r:
            node.v += v
            node.add += v
            return
        self.pushdown(node)
        if l <= node.mid:
            self.modify(l, r, v, node.left)
        if r > node.mid:
            self.modify(l, r, v, node.right)
        self.pushup(node)

    def query(self, l, r, node=None):
        if l > r:
            return 0
        if node is None:
            node = self.root
        if node.l >= l and node.r <= r:
            return node.v
        self.pushdown(node)
        v = 0
        if l <= node.mid:
            v = max(v, self.query(l, r, node.left))
        if r > node.mid:
            v = max(v, self.query(l, r, node.right))
        self.pushup(node)
        return v

    def pushup(self, node):
        node.v = max(node.left.v, node.right.v)

    def pushdown(self, node):
        if node.left is None:
            node.left = Node(node.l, node.mid)
        if node.right is None:
            node.right = Node(node.mid + 1, node.r)
        if node.add:
            node.left.v += node.add
            node.right.v += node.add
            node.left.add += node.add
            node.right.add += node.add
            node.add = 0


class MyCalendarThree:

    def __init__(self):
        self.seg = SegmentTree(1, pow(10,9)+1)

    def book(self, startTime: int, endTime: int) -> int:
        self.seg.modify(startTime+2, endTime+1, 1)
        return self.seg.query(1, int(pow(10,9)+1))

v3 链表实现：动态开点+区间和+区间最大值+区间范围修改

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
import random
class Node:
    def __init__(self, l, r):
        self.left = None
        self.right = None
        self.l = l
        self.r = r
        self.mid = (l + r) >> 1
        self.v = 0
        self.sum = 0
        self.add = 0

class SegmentTree:
    def __init__(self, l, r):
        self.root = Node(l, int(r))

    def modify(self, l, r, v, node=None):
        if l > r:
            return
        if node is None:
            node = self.root
        if node.l >= l and node.r <= r:
            node.v += v
            node.add += v
            node.sum += (node.r - node.l + 1) * v
            return
        self.pushdown(node)
        if l <= node.mid:
            self.modify(l, r, v, node.left)
        if r > node.mid:
            self.modify(l, r, v, node.right)
        self.pushup(node)

    def query(self, l, r, node=None, query_type="max"):
        if l > r:
            return 0 if query_type == "max" else 0
        if node is None:
            node = self.root
        if node.l >= l and node.r <= r:
            return node.v if query_type == "max" else node.sum
        self.pushdown(node)

        if query_type == "max":
            v = float('-inf')
            if l <= node.mid:
                v = max(v, self.query(l, r, node.left, query_type))
            if r > node.mid:
                v = max(v, self.query(l, r, node.right, query_type))
        else:  # query_type == "sum"
            v = 0
            if l <= node.mid:
                v += self.query(l, r, node.left, query_type)
            if r > node.mid:
                v += self.query(l, r, node.right, query_type)

        self.pushup(node)
        return v

    def pushup(self, node):
        node.v = max(node.left.v, node.right.v)
        node.sum = node.left.sum + node.right.sum

    def pushdown(self, node):
        if node.left is None:
            node.left = Node(node.l, node.mid)
        if node.right is None:
            node.right = Node(node.mid + 1, node.r)
        if node.add:
            node.left.v += node.add
            node.right.v += node.add
            node.left.sum += (node.left.r - node.left.l + 1) * node.add
            node.right.sum += (node.right.r - node.right.l + 1) * node.add
            node.left.add += node.add
            node.right.add += node.add
            node.add = 0

def test_segment_tree():
    n = 10**2
    arr = [0] * (n + 1)
    tree = SegmentTree(1, n)

    # Perform 100 random modify operations
    for _ in range(100):
        l = random.randint(1, n)
        r = random.randint(l, n)
        v = random.randint(-100, 100)

        for i in range(l, r + 1):
            arr[i] += v

        tree.modify(l, r, v)

    # Perform 100 random query operations for both max and sum
    for _ in range(100):
        l = random.randint(1, n)
        r = random.randint(l, n)

        max_val = max(arr[l:r + 1])
        max_query = tree.query(l, r, query_type="max")
        assert max_val == max_query, f"Expected max {max_val}, but got {max_query}"

        sum_val = sum(arr[l:r + 1])
        sum_query = tree.query(l, r, query_type="sum")
        assert sum_val == sum_query, f"Expected sum {sum_val}, but got {sum_query}"

    print("All tests passed!")

test_segment_tree()

v3.1 伪链表实现：动态开点+区间和+区间最大值+区间范围修改

v3.2 dict实现：动态开点+区间和+区间最大值+区间范围修改

1

题目

模板题307. 区域和检索 - 数组可修改

leetcode 699.掉落的方块

学习笔记
#数据结构 #区间 #线段树
线段树学习
https://tech.jasonczc.cn/2023/algorithm/ds/interval_searching/segment_tree/
作者
CZY
发布于
2023年5月5日
许可协议
